Can Laser Engraving Be Safely Used on Neodymium Magnets?

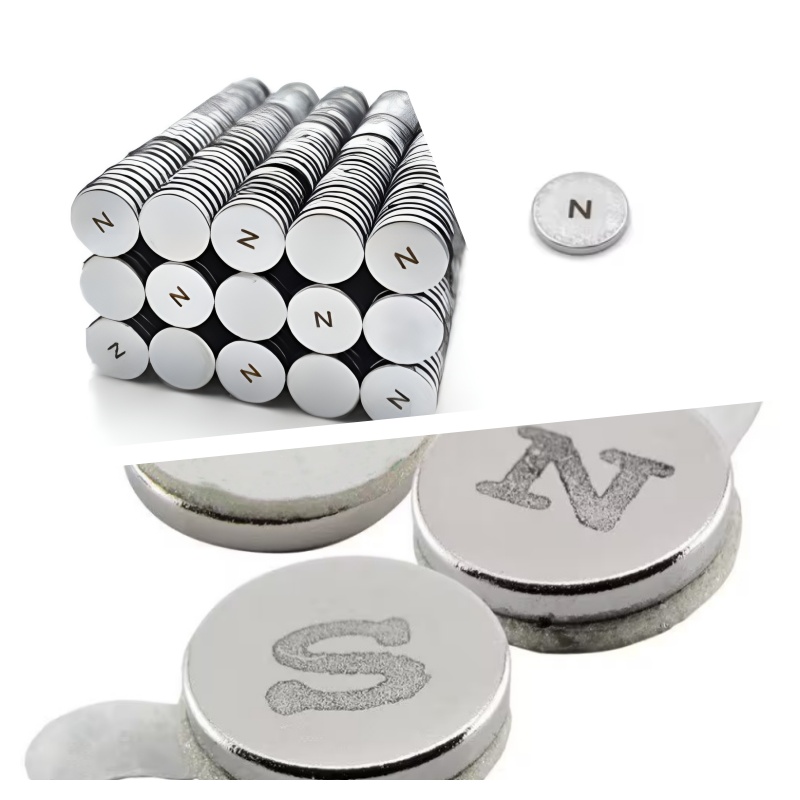

     In the field of precision manufacturing, customers frequently request marking or engraving on neodymium magnets. These markings are typically used to identify the north (N) and south (S) poles of the magnet, or to display logos, model codes, or simple letters for product tracking. While this need is entirely understandable, laser engraving is not ideal for most magnets for the following reasons:

1. High Cost of Laser Engraving

     Laser engraving, while seemingly a simple marking process, requires specialized equipment and precise control for magnets. The reflective coatings used on neodymium magnets (such as nickel, zinc, or epoxy) often require higher laser power or multiple scans to achieve a clearly visible engraving. This increases processing time and cost. For small magnets or bulk orders, even engraving a single character can significantly increase production costs, making it impractical for most applications.

2. Brittleness of Neodymium Magnets

     Unlike metals or plastics, neodymium magnets are inherently brittle. They are made of a sintered alloy of neodymium, iron, and boron, which gives them excellent magnetic strength but low mechanical toughness. During laser engraving, high-temperature shocks and rapid thermal expansion can cause microcracks, surface peeling, and even breakage—especially in high-grade magnets like N52, which are more sensitive to lasers due to their dense crystalline structure.

     However, this doesn't mean all neodymium magnets are unsuitable for laser engraving. For example, larger magnets, such as circular magnetic sheets exceeding 20 mm in diameter and 4 mm in thickness, can often withstand the engraving process. Their greater mass and structural stability help dissipate heat and reduce the risk of cracking. In such cases, engraving simple markings or text is technically feasible—provided the operation is performed correctly and the laser parameters are well controlled.

3. Safer and Smarter Alternatives

• To identify magnetic poles or add simple markings, we recommend the following non-destructive methods:

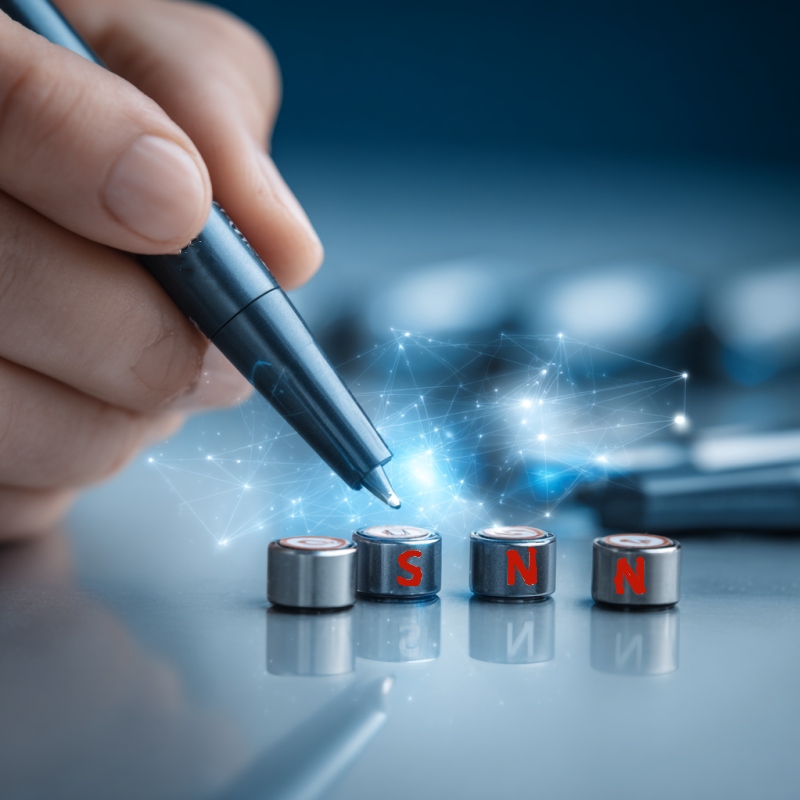

• Marking with markers or paint—using colored pens (usually red for north pole, blue or black for south pole).
• Affixing labels—suitable for larger magnets or magnet sets.
• Custom packaging—printed with polarity information or barcodes.
• These methods are cost-effective, quick, and convenient, and will not damage the magnet's structure or coating.

     While laser engraving can achieve professional results, it is not suitable for most magnets of this type due to the fragility and cost of small or thin neodymium magnets. For larger magnets, controlled engraving is possible, but this requires careful handling and specialized skills. Hefei Chao Electronics always recommends the most practical and reliable marking methods to ensure your magnets are safe, durable, and fully functional.
