Salt Spray Test for Neodymium Magnets

    Neodymium magnets contain iron, which makes them vulnerable to corrosion when exposed to moisture, salt, and harsh environmental conditions. To ensure long-term performance, manufacturers use a salt spray test to evaluate the corrosion resistance of neodymium magnets and their protective coatings.

    Salt spray test also known as a salt fog test, is an accelerated corrosion test used to simulate a high-humidity and salt-containing environment. During the test, electroplated neodymium magnets are placed inside a controlled testing chamber where they are continuously exposed to a fine mist of salt solution.

    The purpose of this test is to check the durability of different surface coatings and determine how well they protect the magnet material from corrosion.

How is The Salt Spray Test Performed?

1.Sample Preparation

Before testing, neodymium magnet samples are cleaned and inspected to ensure there are no visible defects on the coating surface. The magnet size, shape, coating type, and production batch are recorded for accurate evaluation.

2.Salt Solution Preparation

A standard salt solution is prepared using sodium chloride (NaCl) and purified water. The concentration and pH value of the solution must meet testing standards to ensure reliable results.

3.Salt Spray Exposure

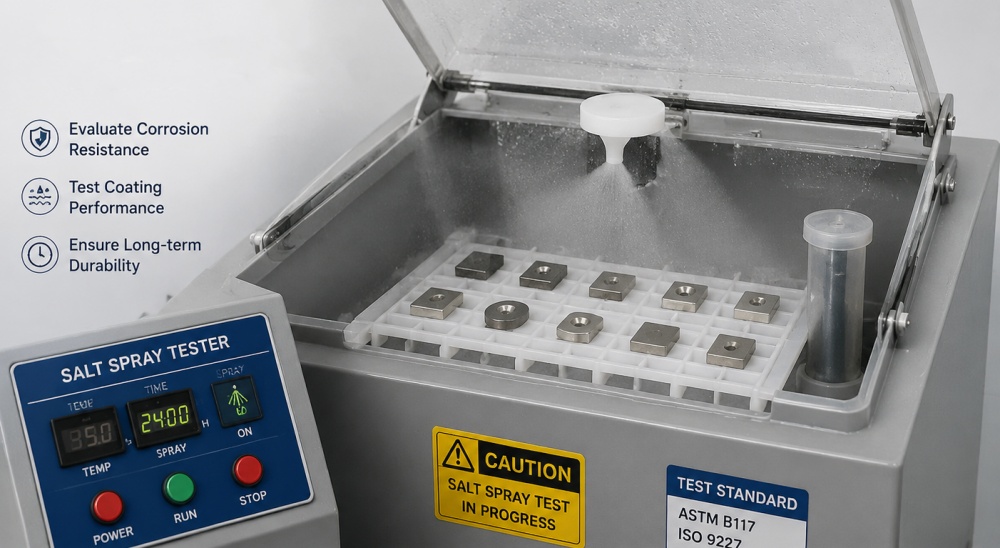

The rare earth neodymium magnets are placed inside a salt spray chamber, where atomized salt mist continuously contacts the magnet surface. The testing temperature, humidity, and spray duration are carefully controlled.

Depending on customer requirements and coating specifications, the test duration can range from several hours to hundreds or even thousands of hours.

4.Surface Inspection and Evaluation

After testing, the magnets are removed from the chamber and inspected for corrosion signs, including rust spots, coating peeling, cracks, or surface damage. The results help evaluate coating quality and corrosion resistance.

Factors Affecting Salt Spray Test Results

• Coating thickness: A thicker and more uniform coating usually provides better protection.

• Surface quality: Smooth surfaces with fewer defects reduce the risk of corrosion.

• Magnet material grade: Different NdFeB grades May have different corrosion sensitivity.

• Operating environment: Temperature, humidity, and chemical exposure can affect magnet durability.

    Salt spray testing helps manufacturers verify whether a coating can effectively protect the neodymium magnet core from oxidation and corrosion. A high-quality coating improves the magnet’s service life, especially in applications exposed to humidity, outdoor environments, or marine conditions.

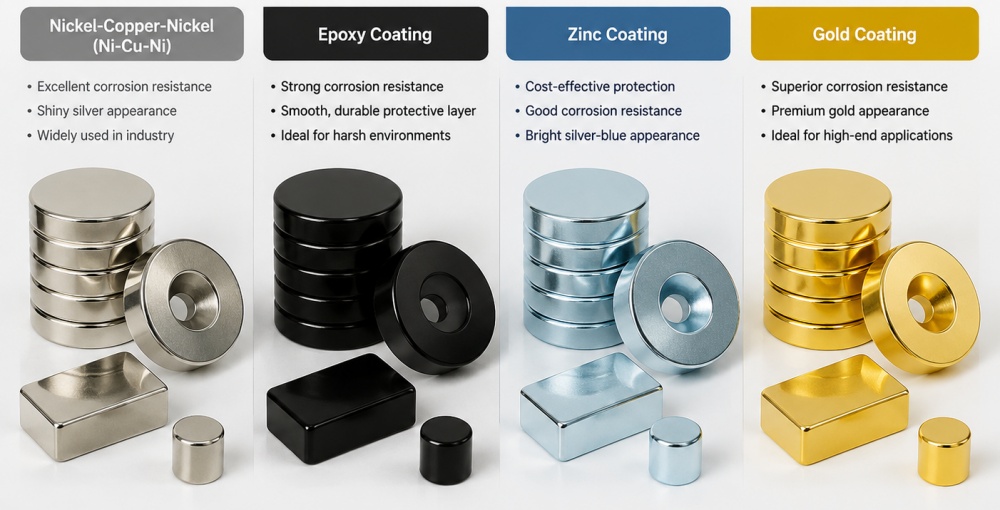

    For example, Ni-Cu-Ni coated neodymium magnets provide excellent general corrosion protection and are widely used in industrial applications. Epoxy coated magnets offer stronger resistance against moisture and chemical environments, making them suitable for outdoor or demanding applications.
